Masalah
Bagaimana
cara membangun aplikasi web service dengan menggunakan PHP NuSoap sebagai
pustaka web service-nya pada berapa kali kata (yang diinputkan) disebutkan pada
instagram?
Solusi
Solusi
studi kasus akan di bagi menjadi 5 Tahapan, yaitu :
1.
Merancang Arsitektur Sistem
2.
Merancang dan Membuat
Struktur Database/Tabel
3.
Membuat Script Web Service
Server (WSDL)
4.
Membuat Script Web Service
Client
5.
Visualisasi dengan Instagram
Tahapan Solusi
1.
Merancang Arsitektur Sistem
2.
Merancang dan Membuat
Stuktur Database/Tabel
Database Engine : MySQL
Database Navigator : PhpMyAdmin
Struktur Database/Table
Database Name : insta
Table Name : info_penduduk_propinsi
Struktur Tabel
Nama Field
|
Type Data
|
Length
|
Id
|
Integer
|
11
|
Nama
|
Varchar
|
255
|
Jumlah
|
Integer
|
11
|
Script
Create database insta;
|
Crate table search
CREATE TABLE IF NOT EXISTS `search` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`nama` varchar(255) NOT NULL,
`jumlah` int(11) NOT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=latin1 AUTO_INCREMENT=5 ;
|
Insert table search
INSERT INTO `search` (`id`, `nama`, `jumlah`) VALUES
(1, 'halima', 0),
(2, 'retno', 0),
(3, 'love', 0),
(4, 'fita', 0);
|
3.
Membuat Script Web Service
Server (WSDL)
Kebutuhan :
- AMP (Apache MySQL PHP )
- Pustaka/Library PHP NuSoap
nusoap.php
db_config.php ws_server.php
Script server ( server.php )
<?php
require_once('lib/nusoap.php');
$ns =
"http://localhost/a/server.php";
$server = new soap_server;
$server->configureWSDL('Search
Instagram_Halima_Retno_Fita', $ns);
$server->wsdl->schemaTargetNamespace
= $ns;
$server->register('search', array('nama'
=> 'xsd:string'),
array('return'=>'xsd:string'), $ns);
function search($nama) { //$nama hrs sm dgn nama field dtbase
if (!$nama) {
return new soap_fault('Client', '', 'Harus
ada nilainya!', '');
}
if ($conn =
mysql_connect("localhost", "root", "")) {
if ($db =
mysql_select_db("insta")) {
$result = mysql_query("SELECT * FROM
search WHERE nama = '$nama'");
$jumxx=mysql_num_rows($result);
while ($row = mysql_fetch_array($result)) {
$id = $row["id"];
$nama = $row["nama"];
$jumlah = $row["jumlah"];
}
} else {
return new soap_fault('Database Server',
'', 'Koneksi ke database gagal!', '');
}
} else {
return new soap_fault('Database Server',
'', 'Koneksi ke database gagal!', '');
}
if($jumxx>0){
return "$id";
}else{
return "Nama belum terdaftar";
}
}
$POST_DATA = isset($GLOBALS['HTTP_RAW_POST_DATA'])
?
$GLOBALS['HTTP_RAW_POST_DATA'] : '';
$server->service($POST_DATA);
exit();
?>
|
Hasil
WSDL Web Service Server
ScreenShoot
Web Service Server (WSDL)
4.
Membuat Script Web Service
Client
Kebutuhan :
1. AP (Apache PHP)
2. Pustaka/Library PHP NuSoap
Hasil SOAP Envelope Web
Service Client ( Response dan Request ke Web Service Server )
5.
Visualisasi dengan Instagram
Kebutuhan:
1. AP (Apache PHP)
2. Instagram API
3. Koneksi Internet (instagram.com)
Script Form(form.php)
<!DOCTYPE
html>
<html>
<head>
<link
rel="stylesheet" type="text/css"
href="api.css">
<title>API
Instagram</title>
</head>
<body
background="api/bg.jpg">
<div
align="center">
<div
id="template">
<div id="header"><img
src="api/hd.png" height="150" width="950">
</div>
<div id="navigasi">
<table align="center"
width="800px">
<tr
align="center">
<td
width="200px"><a href="index.html">Beranda
</a></td>
<td
width="200px"><a href="form.php">Search Tags
</a></td>
</tr>
</table>
</div>
<div id="kiri">
<div class="b">
<br><br>
<p
align="center">Menu Utama
<ul>
<li><a
href="form.php">Search Tags</a></li>
</ul>
<br>
<p
align="center">Nama Kelompok :</p>
<ul>
<li>Halimatus
Sya'diyah</li>
<li>Retno Wahyu
Wulandari</li>
<li>Nur Fitriyah
Lestari</li>
</ul>
</p> <br>
</div>
</div>
<div id="isi">
<h1
align="center">Instagram Tag Search</h1>
<form method=POST
action=client.php>
Search : <input
type=text name=nama><br>
<input type=submit><br>
</form>
</div>
<div
id="clear"></div>
<div id="footer">
<p
align="center"><blink><b>Copyright@2014 - Halima,
Retno, Fita </b></blink></p>
</div>
<div
id="clear"></div>
</div>
</body>
</html>
|

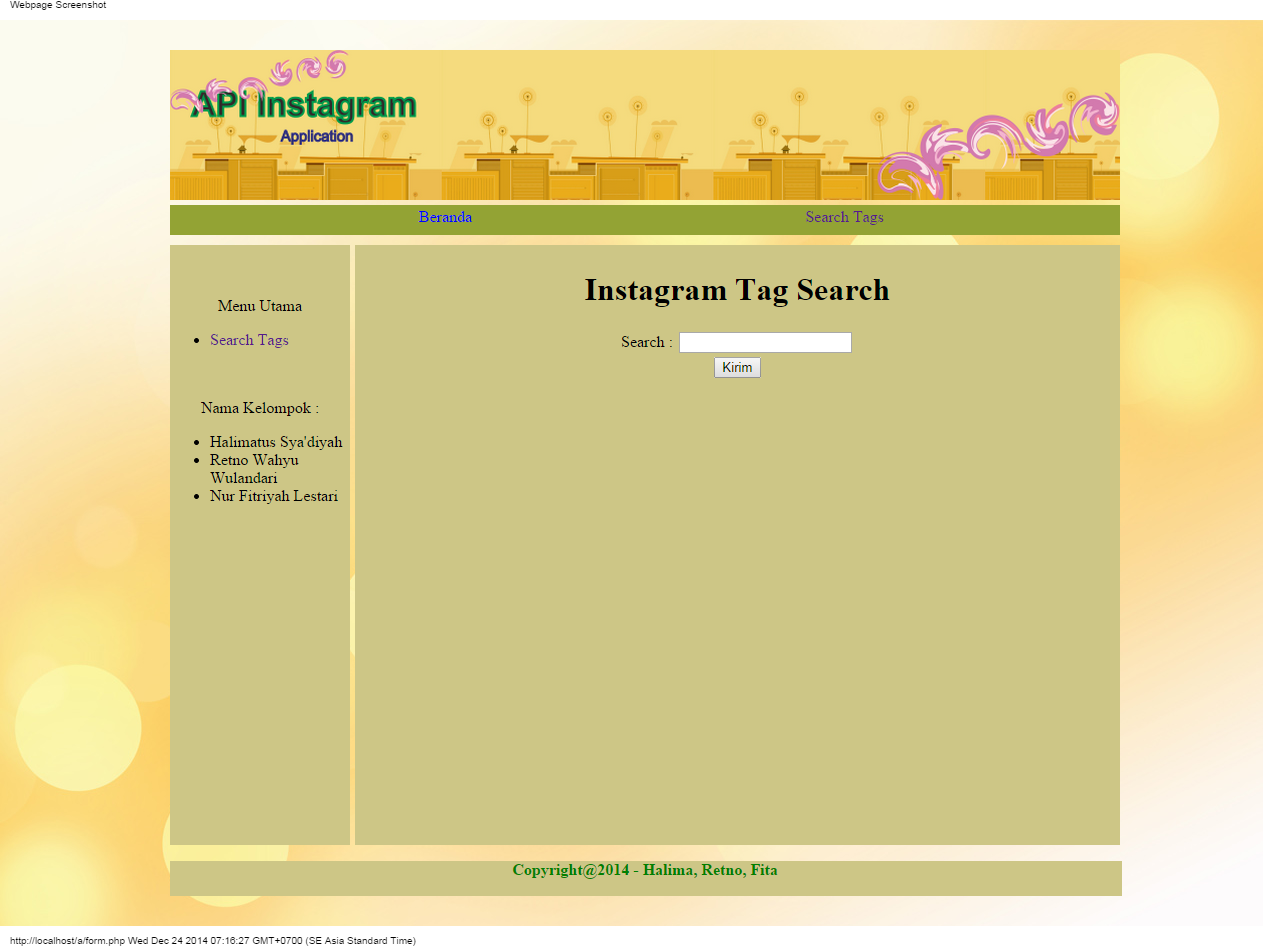

ScreenShoot Instagram Web Service Client (form.php)
Script Client(client.php)
<!DOCTYPE html>
<html>
<head>
<link rel="stylesheet"
type="text/css" href="api.css">
<title>API
Instagram</title>
</head>
<body
background="api/bg.jpg">
<div align="center">
<div id="template">
<div
id="header"><img src="api/hd.png"
height="150" width="950">
</div>
<div
id="navigasi">
<table
align="center" width="800px">
<tr
align="center">
<td
width="200px"><a href="index.html">Beranda
</a></td>
<td
width="200px"><a href="form.php">Search Tags
</a></td>
</tr>
</table>
</div>
<div
id="kiri">
<div
class="b">
<br><br>
<p
align="center">Menu Utama
<ul>
<li><a
href="form.php">Search Tags</a></li>
</ul>
<br>
<p
align="center">Nama Kelompok :</p>
<ul>
<li>Halimatus
Sya'diyah</li>
<li>Retno
Wahyu Wulandari</li>
<li>Nur
Fitriyah Lestari</li>
</ul>
</p>
<br>
</div>
</div>
<div
id="isi">
<?php
require_once('lib/nusoap.php');
?>
<?php
$nama="$_POST[nama]";
$wsdl="http://localhost/a/server.php?wsdl";
$client =new
nusoap_client($wsdl,true);
// Call the SOAP method
$param = array('nama'=>$nama);
$result = $client->call('search',
$param);
if($result=="Nama belum
terdaftar")
{
echo "$result";
}else{
echo
"<p align='left'>"."ID: $result";
echo
"<br/>";
echo
"Nama : $nama";
echo
"<br/>";
echo
"Jumlah :";
echo
"<br/>";
}
//echo '<h2>Request</h2>';
//echo '<pre>' .
htmlspecialchars($client->request, ENT_QUOTES) . '</pre>';
//echo
'<h2>Response</h2>';
//echo '<pre>' .
htmlspecialchars($client->response, ENT_QUOTES) . '</pre>';
?>
<br/>
<?php
if(!empty($_POST['nama'])){
$json_url
=
'https://api.instagram.com/v1/tags/'.$_POST['nama'].'/media/recent?access_token=322328738.467ede5.37be716059df45ceb644aad9bef24f19';
$json
= file_get_contents($json_url);
$links
= json_decode($json);
foreach(
$links->data as $pecah ) {
echo
'<a href = "'.$pecah->link.'"
target="blank"><img src
="'.$pecah->images->thumbnail->url.'"/></a>';
}
}
?>
</div>
<div
id="clear"></div>
<div
id="footer">
<p
align="center"><blink><b>Copyright@2014 - Halima,
Retno, Fita </b></blink></p>
</div>
<div
id="clear"></div>
</div>
</body>
</html>
|
ScreenShoot Instagram Web Service Client
(client.php)
Selamat mencoba, semoga bermanfaat :)
